Zig Zag Corrugated Panels
The Zig Zag panel brings order and rhythm to a facade through its unmistakable folded profile. Clean, repetitive, and sharply defined, it creates a graphic surface language that reads with clarity both up close and from a distance. Each fold is precisely formed at ninety degrees, producing a sequence of tight triangular peaks and valleys that animate a surface enhanced by one of our bold, dynamic finishes.

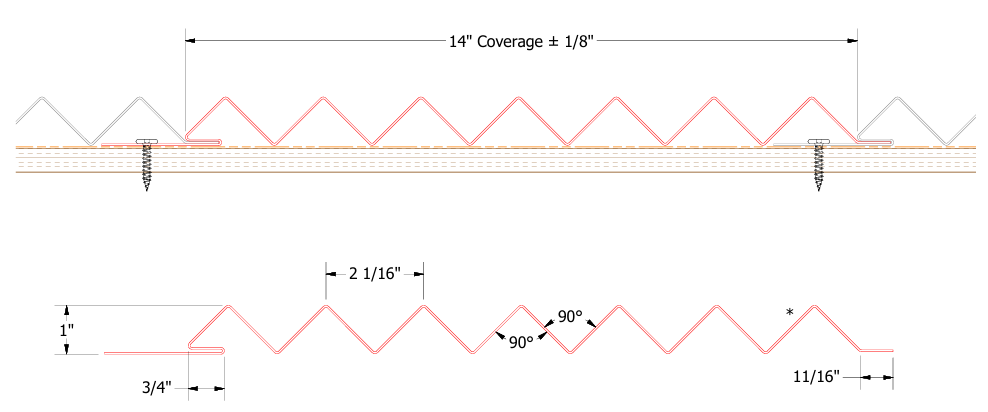

With a minimum panel width of 14 inches and available in 0.8mm or 1mm thickness, the Zig Zag panel is engineered for sharp definition and lasting performance. What sets it apart is its balance of precision and texture. It does not try to mimic other materials or hide its form. It embraces its geometry. The result is a panel that feels both engineered and expressive, offering a contemporary pattern that quietly commands attention.
See the full system performance, details, options, and downloadable files below.
About Pure + FreeForm Zig Zag Corrugated Panels

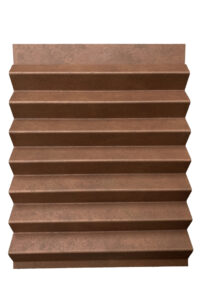

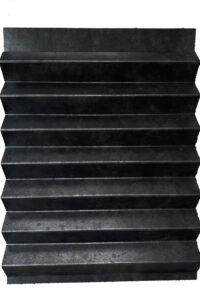

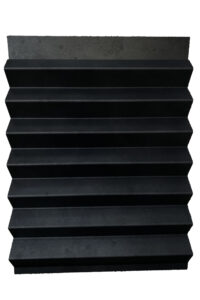

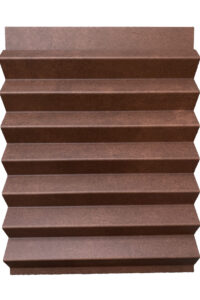

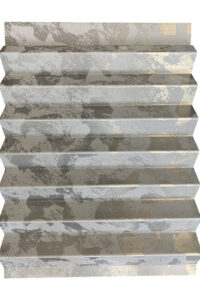

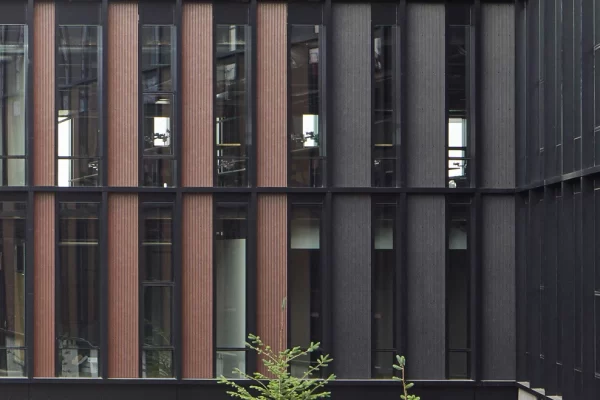

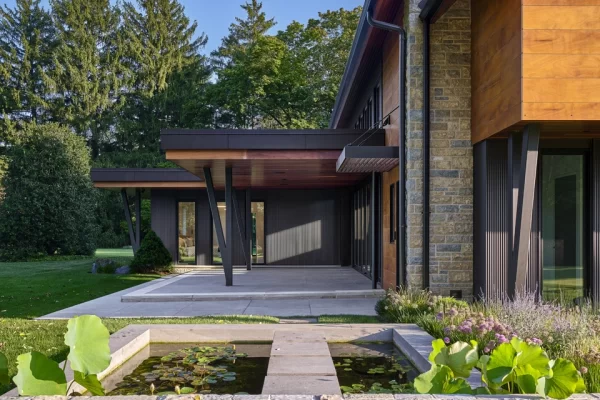

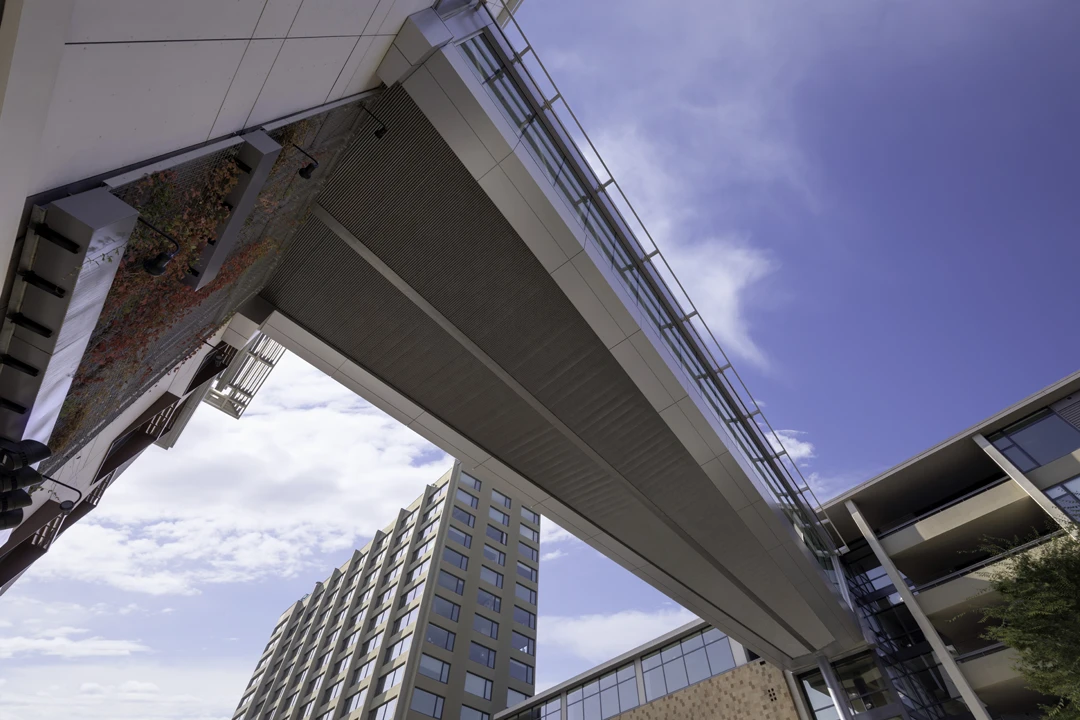

Zig Zag Panel Photos
How to Specify Zig Zag Corrugated Panels
Select a Finish
Select from one of our bold, extraordinary, design-forward finishes or choose to create a custom finish. See all of our finishes to find which is perfect for your design.
Choose a Standard Size
Panels are formed from flat sheets sized 48″ by up to 177″. The panel size will depend directly upon the frequency of corrugation peaks, as well as amount of space between the peaks. For example, deep and frequent peaks will result in smaller panel sizes due to the amount of material needed to achieve the profile. Let us know your desiring sizing and we work to optimize the system.
Standard Sizes
14″ Wide | .8mm
Choose An Orientation
Depending on the application of the panels, a vertical or horizontal appearance may be desired to create various shadow lines. For ceilings, panels can be suspended to add depth to the surface. Panels can have exposed or concealed fasteners.
Add Perforations or Acoustics
These panels can be perforated or have acoustical backing added to them, or both! Perforation patterns can be custom or standard, see our offerings.
Material Performance

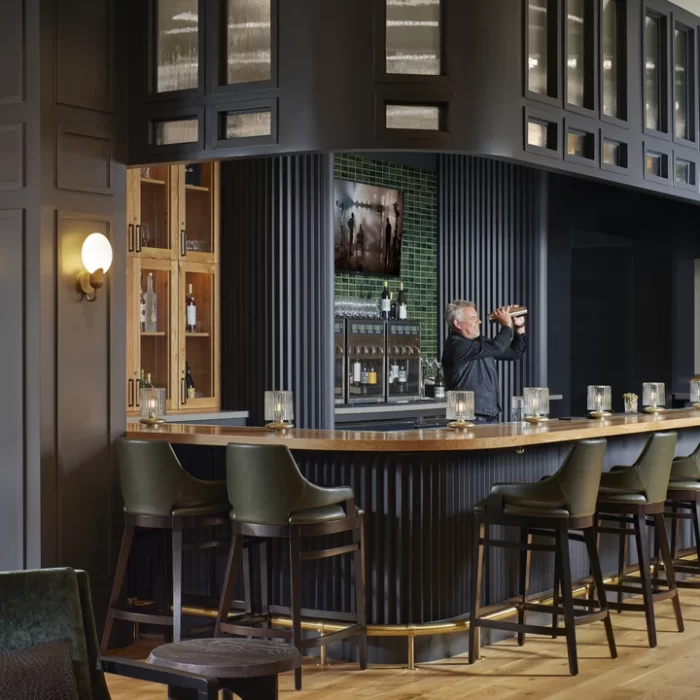

Want this look for an interior project?
Check out our millwork page to learn more about purchasing flat sheets which can be customized by your local millworker to achieve a variety of different looks.
