Terrain Corrugated Panels
The Terrain panel introduces a bold, stepped profile that adds striking depth and movement to any architectural surface. Defined by strong horizontal lines and deep folds, this panel creates a sculptural effect that captures and reflects light in a dynamic, ever-changing way.

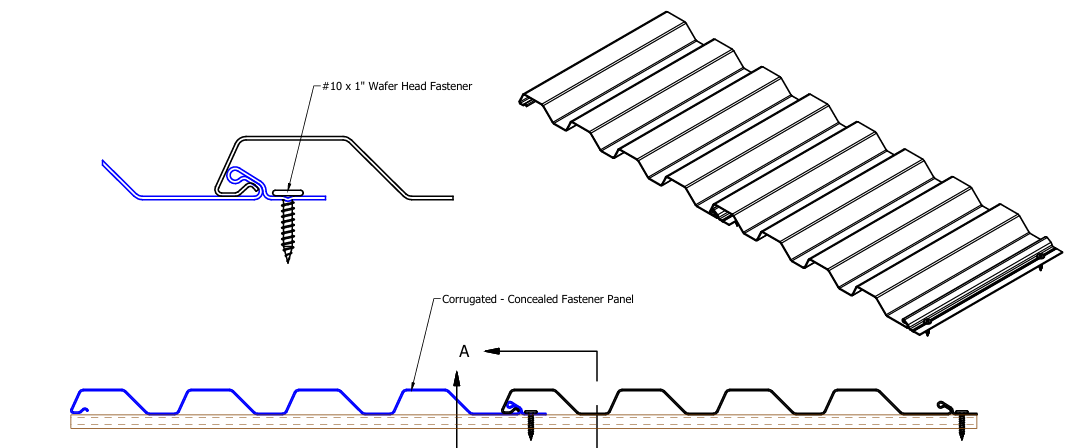

With a required panel width of 16 inches and formed from aluminum at either 0.8mm or 1mm thickness, Terrain is engineered for precision and long-term durability. Its interlocking concealed fastener system ensures a clean, uninterrupted surface while simplifying installation across vertical or horizontal orientations. Visually robust yet architecturally refined, the Terrain panel is ideal for designers seeking to amplify rhythm and dimensionality without sacrificing subtlety.
This system’s generous angles provide a dynamic surface with less material use than other corrugated options. This makes it a reliable choice where rhythm variation is desired and value-driven design is of the essence. In addition to the trapezoidal peaks, long stretches of valley run can be added to create an even more dynamic design that further reduces budget strain.
See the full system performance, details, options, and downloadable files below.
About Pure + FreeForm Terrain Corrugated Panels

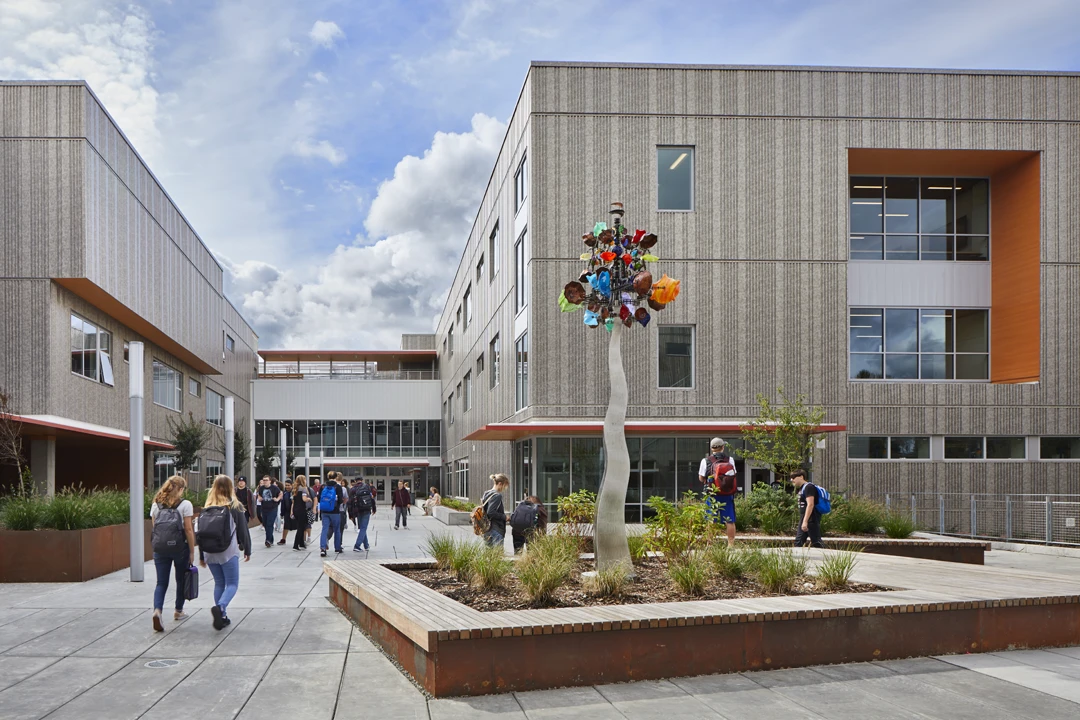

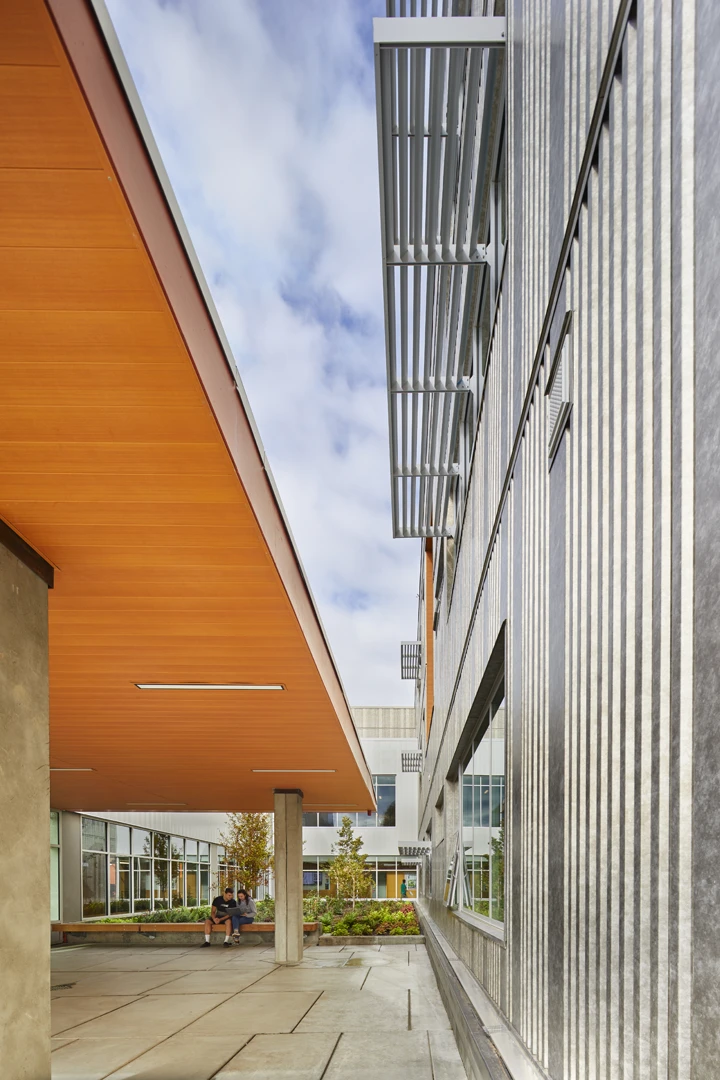

Terrain Panel Photos
How to Specify Terrain Corrugated Panels

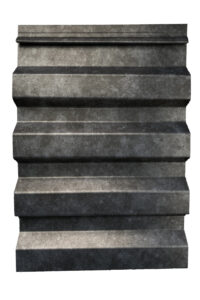

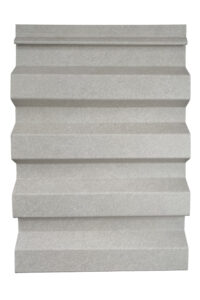

Select a Finish
Select from one of our bold, extraordinary, design-forward finishes or choose to create a custom finish. See all of our finishes to find which is perfect for your design.
Choose a Standard Size
Panels are formed from flat sheets sized 48″ by up to 177″. The panel size will depend directly upon the frequency of corrugation peaks, as well as amount of space between the peaks. For example, deep and frequent peaks will result in smaller panel sizes due to the amount of material needed to achieve the profile. Let us know your desiring sizing and we work to optimize the system.
Standard Sizes
16″ Wide | .8mm
Choose An Orientation
Depending on the application of the panels, a vertical or horizontal appearance may be desired to create various shadow lines. For ceilings, panels can be suspended to add depth to the surface. Panels can have exposed or concealed fasteners.
Add Perforations or Acoustics
These panels can be perforated or have acoustical backing added to them, or both! Perforation patterns can be custom or standard, see our offerings.
Material Performance
Want this look for an interior project?
Check out our millwork page to learn more about purchasing flat sheets which can be customized by your local millworker to achieve a variety of different looks.
