Scale™ Wall System
Formerly Called Flat Lock

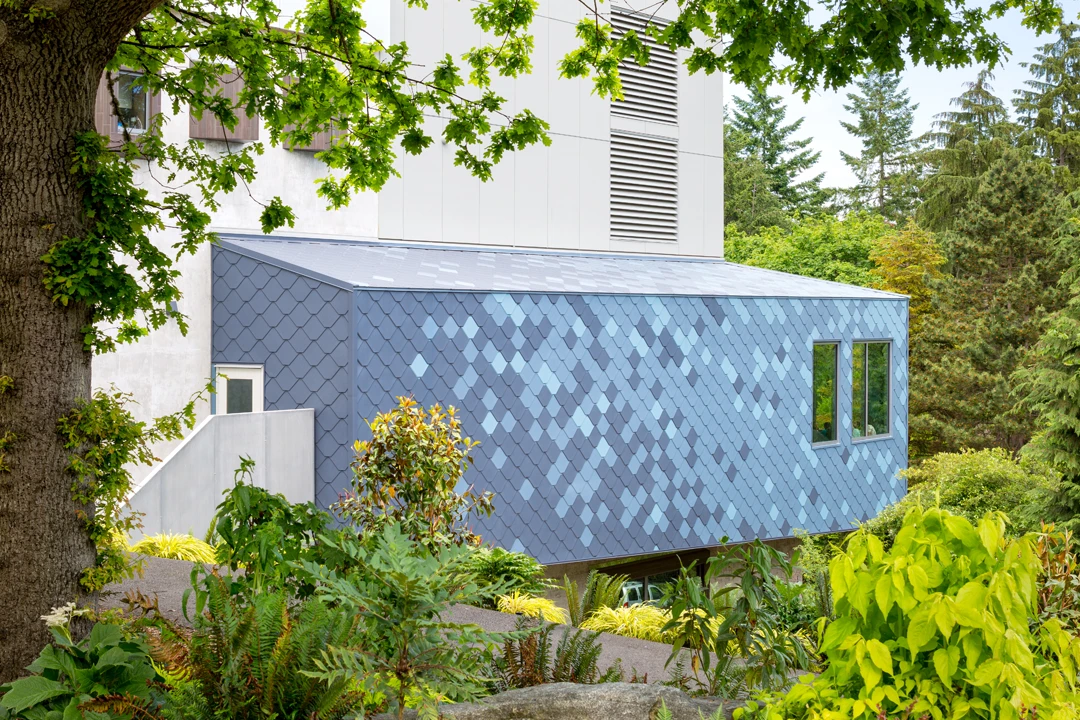

Our Scale™ Wall System is a high-performance architectural metal wall panel system designed to deliver both durability and dynamic visual depth. Formerly known as a flat lock panel system, the Scale™ hook seam panel system features interlocking metal panels installed in a distinctive shingle-style configuration. This design creates a wind-resistant metal cladding system that performs exceptionally well for both exterior metal wall panels and architectural facade applications.
The Scale™ wall system introduces deeper reveals that enhance shadow lines and dimensional texture across the surface of the wall. The angled placement of the panels allows light to reflect at multiple angles, making it especially effective for architectural metal finishes with depth and variation. In addition to exterior wall cladding, Scale™ metal panels can also be micro-perforated with acoustic backing to create acoustic metal panels for interior architectural wall applications, combining design impact with sound control. See the full system performance, details, options, and downloadable files below.
The Scale™ wall system is compatible with our Stocked Finish Program since it utilizes 1mm thick sheets.
About Pure + FreeForm Scale™ Wall System
How to Specify Scale™ Wall System
Select a Finish
Select from one of our bold, extraordinary, design-forward finishes or choose to create a custom finish. See all of our finishes to find which is perfect for your design.
Choose a Standard Size
Scale™ panels come in both standard and custom sizing. Standard widths are 12″ – 16″ with standard lengths 36″ – 56″ in both horizontal and vertical applications. Panels are available in thicknesses from 0.8mm to 1.0mm.
All of our systems can be customized. Standard sizes will be the most cost-effective option.
Standard Sizes
12″ x 36″
12″ x 48″
12″ x 56″
16″ x 36″
16″ x 48″
16″ x 56″
Choose A Joint Orientation: Staggered or Aligned
Panels can have the vertical joint lines aligned, or in a Stack formation, or staggered, in a Running Bond formation. No matter the design, the fasteners for this system are concealed.
Add Perforations or Acoustics
These panels can be perforated or have acoustical backing added to them, or both! Perforation patterns can be custom or standard, see our offerings.
Material Performance
Need a Scale™ Wall System done Fast?
Learn more about our 17 in stock finishes that can be utilized with any of our Scale™ wall system options for a quick turnaround project.
How do I specify the Scale™ Wall System in my project documents?
We can provide finish names, color codes, product facts, and specification support so you can accurately reference the wall system in your drawings and specifications. Visit our Specification Builder to walk you through our standard product offerings and show you the optimal sizes, options available and generate a copy-and-pasteable version sent directly to your email.
Frequently Asked Questions
Flat lock metal panels are commonly used for architectural facades, feature walls, soffits, canopies, column covers, and interior wall applications. The Scale™ Wall System delivers the same design flexibility while offering advanced finish options and high-performance aluminum construction.
Yes. Scale™ metal panels can be micro-perforated and paired with acoustic backing to create acoustic metal wall panels that help improve sound absorption in interior architectural environments.
Flat lock metal panels are interlocking architectural metal panels installed in a hook seam configuration to create a continuous shingle-style facade. Today, Pure + FreeForm refers to this system as the Scale™ Wall System, but it offers the same design principles architects have long associated with traditional flat lock metal panels.
Yes. Scale™ is Pure + FreeForm’s branded version of the traditional flat lock metal panel system. While the name has changed, the hook seam installation method and architectural appearance remain the same, enhanced by our proprietary Ultra High Performance Aluminum finishes.
Scale™ Wall System Documents
General
Sustainability
Performance
Interested in a Cohesive Design?
For ceilings, check out all of our systems that can be customized to your design intent. These systems work cohesively with your chosen wall design.
