Siding & Soffit

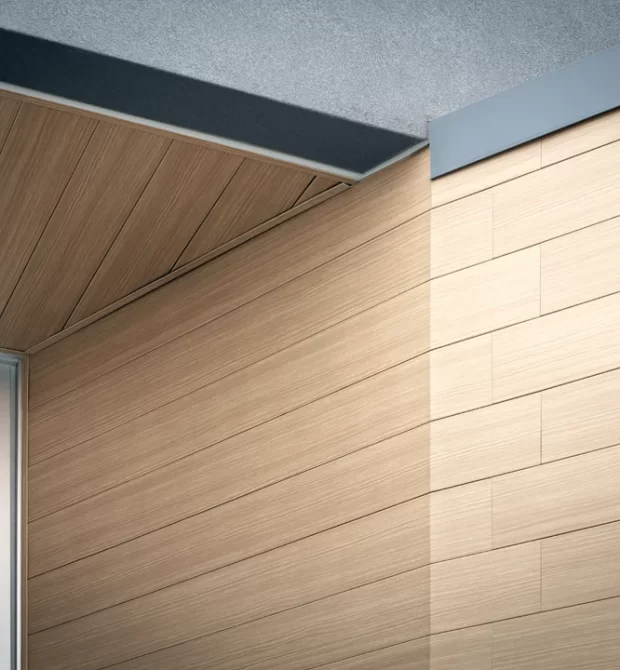

Metal is an exceptional material for siding paneling due to its durability. Pure + FreeForm offers siding panels with high-end design quality and superior performance. Our AAMA 2605 rating ensures the material will resist UV degradation, corrosion, and chemical exposure. Pairing this with an FEVE resin ensures superior performance of the color and gloss levels of the finish for optimal longevity.

Request Samples

AAMA 2605 High Performance Exterior Finish

FEVE Grade Finishes

20-Year Finish and Panel Warranty

VOC Free and LBC 3.1 Red List Free

Low maintenance, up to 60-year lifecycle

Faster lead times

Siding Data Sheet
Soffit Data Sheet
Quote this Product

Panel Details and Sizing

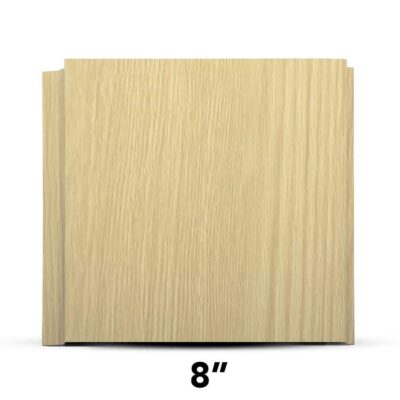

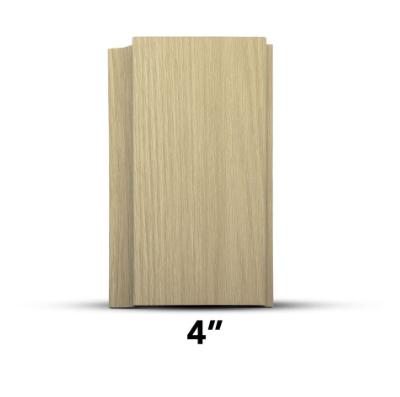

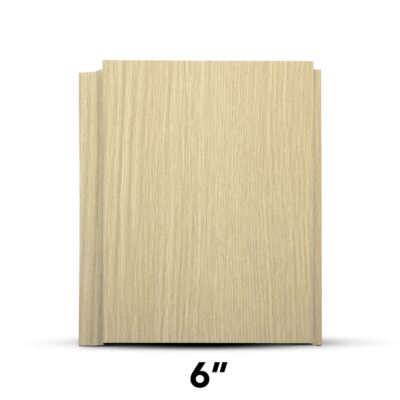

Siding panels are available in 2 forms – Splice Plate or End Fold – depending upon the needs of the design and site. Siding panels are available in widths of 4″, 6″, of 8″. The maximum length of the siding panel is 177″, offering more panel options to meet the needs of project conditions than our standard 120″ long sheet. This product is cut-to-fit. This product can also be self-fabricated from a flat sheet, sized 48″ x 177″. Both panels and flat sheets come in a standard thickness of 1.0mm (0.04″). If you require a different size or profile, our Flush/Reveal panel system provides a customizable option for siding.

4
6"
8"

Design Potential

Pure + FreeForm siding panels are standardly available in 5 durable and unique woodgrain finishes. Metal woodgrain siding offers superior performance to traditional, natural wood siding. Our finish and surface design technology make these materials exceptionally lifelike, celebrating the beauty of wood with the performance of metal. If one of the available colorways is not quite fitting the needs of your design, design something custom or choose an existing finish from our library to pair with a customized panel system.

Availability

Fast Lead Times

Panels: 4 Weeks

Flat Sheets: 2 Weeks

Lead times are considered from point of formal order with Pure + FreeForm.

Fasteners

Concealed

Profile

Flush or Reveal Profile options

Flat Profile standard

Trim

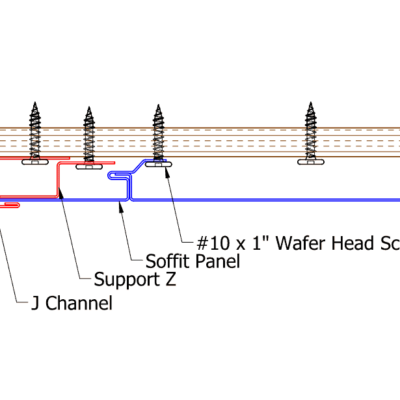

Option 1 – Tailored Trim Package provided by Pure + FreeForm, including: Base Trim, J Channel, Inside/Outside Corner Post, Support Z, J Closure, Head Trim, Head Angle Trim,  Angle Trim w/Return, Angle Trim, Window Sill Trim)

Option 2 – Self-Fabricated Trim. Additional Flat Sheets should be purchased to support trim needs.

Installation

This product can be easily installed using industry standard methods. Installation is not provided by Pure + FreeForm.

Optional

Perforations (Standard Patterns Only)

Please note perforations will add to the lead time of the material.

Material Performance

AAMA 2605 High Performance Exterior Finish

Resists UV Degradation & Corrosion

Resists Chemical Exposure

Color Resists Fading, Chalking, or Loss of Gloss

Made from 100% Aluminum

Contains at least 20% post-consumer recycled content

Red List-free and VOC-free

HPD and LEED Compliant

100% Recyclable

ASTM E84 Class A Fire Rating

CAN ULC-S102 Compliant

Requires little to no maintenance

Easily cleaned with instructions provided

Awards

We’re honored that Pure + FreeForm’s ready-to-ship soffits and siding were selected by Architect’s Newspaper as an Editor’s pick in their 2023 product awards. The program and products were recognized in the Facades: Cladding category.
