Sharkfin Corrugated Panels
The Sharkfin panel brings a sculptural boldness to architectural surfaces through its deep angular profile and tightly spaced fins. With crisp folds and sharp angles, this panel transforms flat surfaces into dynamic high relief facades that shift dramatically with light and shadow.
The panel requires a minimum width of 12 inches and is formed from aluminum at either 0.8mm or 1mm thickness, ensuring both visual sharpness and structural stability. Engineered with precision and built for rhythm, the Sharkfin panel delivers a high impact aesthetic while maintaining clean lines and repeatable geometry. Its pronounced vertical fins create a strong visual cadence that adds structure and drama, amplifying material depth across any scale.
Whether finished in bold metallics or soft neutrals, the Sharkfin panel elevates the perception of form and dimension, turning a surface into a design statement. The finds are perpendicular from one side and angled from the other, providing a unique look from two perspectives of the viewer if installed vertically. This panel is ideal for projects that demand attention, movement, and architectural clarity.
See the full system performance, details, options, and downloadable files below.
About Pure + FreeForm Sharkfin Corrugated Panels

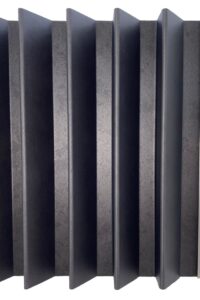

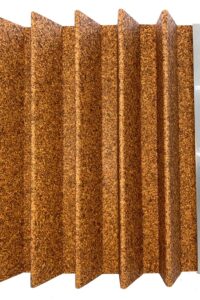

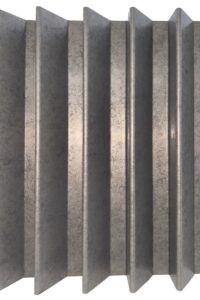

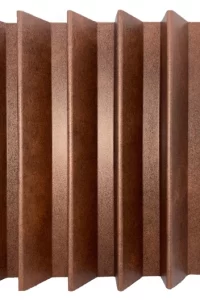

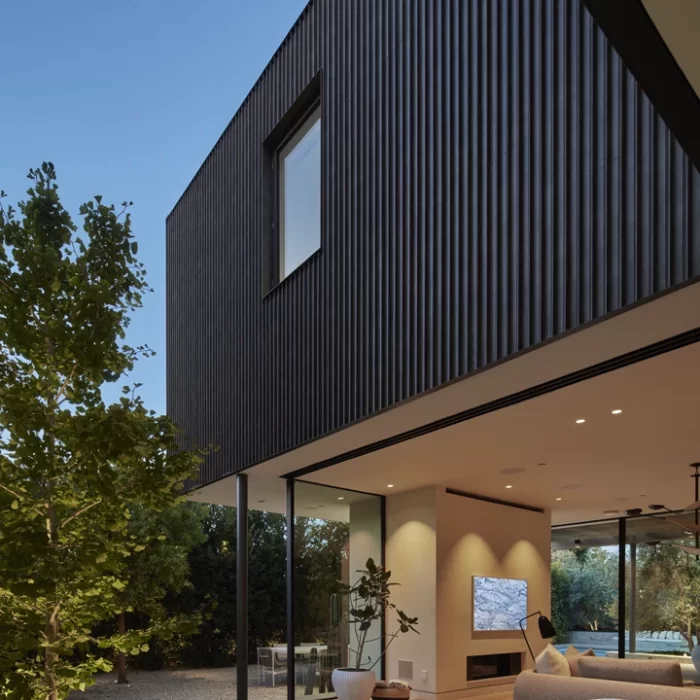

Sharkfin Panel Photos
How to Specify Sharkfin Corrugated Panels
Select a Finish
Select from one of our bold, extraordinary, design-forward finishes or choose to create a custom finish. See all of our finishes to find which is perfect for your design.
Choose a Standard Size

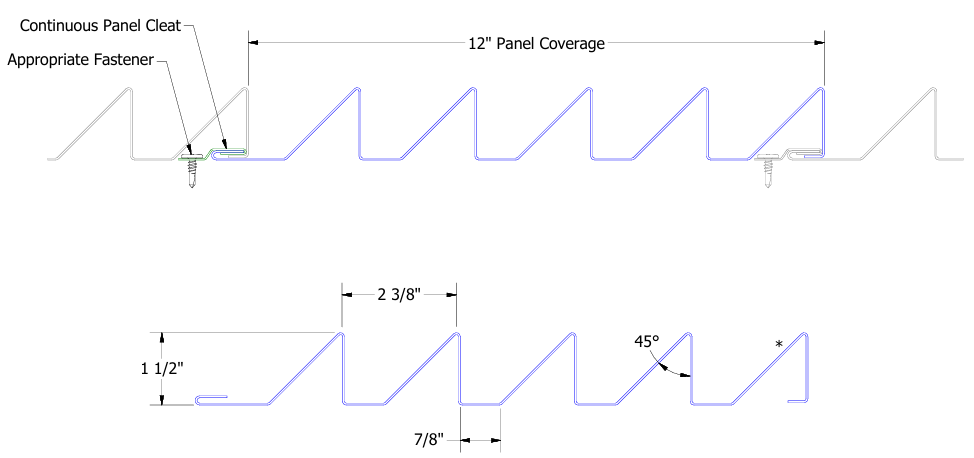

Panels are formed from flat sheets sized 48″ by up to 177″. The panel size will depend directly upon the frequency of corrugation peaks, as well as amount of space between the peaks. For example, deep and frequent peaks will result in smaller panel sizes due to the amount of material needed to achieve the profile. Let us know your desiring sizing and we work to optimize the system.
Standard Sizes
12″ Wide | .8mm
Choose An Orientation

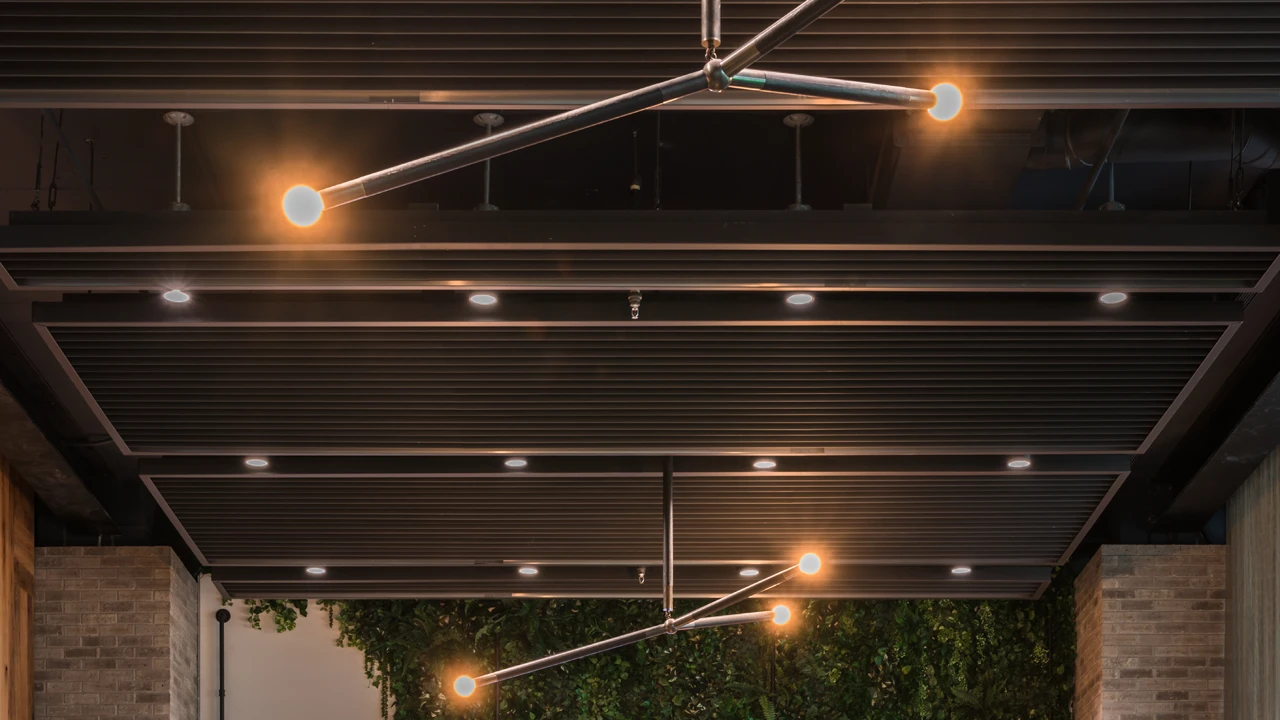

Depending on the application of the panels, a vertical or horizontal appearance may be desired to create various shadow lines. For ceilings, panels can be suspended to add depth to the surface. Panels can have exposed or concealed fasteners.
Add Perforations or Acoustics
These panels can be perforated or have acoustical backing added to them, or both! Perforation patterns can be custom or standard, see our offerings.
Material Performance
Want this look for an interior project?
Check out our millwork page to learn more about purchasing flat sheets which can be customized by your local millworker to achieve a variety of different looks.
